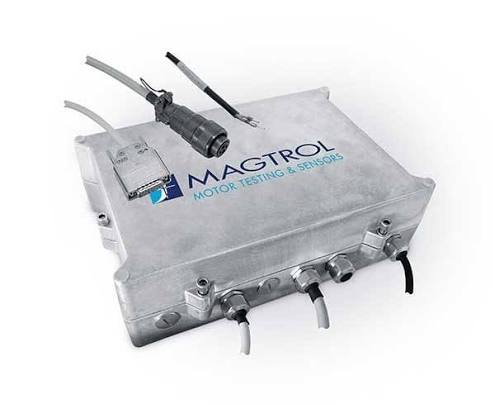

Model: 234-410-000-111 (Item: DES 410/111)
-
Mô tả: Kit nguồn kích thích cho băng thử (Dynamometer excitation supply kit) series 2.7 và 43
-
Vật liệu vỏ: Vỏ nhôm (Aluminium housing)
-
Cáp đi kèm:
-
01 Cáp 5m kết nối giữa DES410 và bộ điều khiển DSP6001/DSP7000
-
01 Cáp 1.5m kết nối giữa DES410 và Dynamometer
LIST CODE :
1. Magtrol - P/N: 954-21-11-0126Model: MIC-5-0039 10H7/10H7
COUPLING, 10mm - 10mm 20K RPM
2. Magtrol - P/N: 007297Model: AHB-3.3
BRAKE, AIR COOLED, 24V
Rated torque 3.3 Nm
Max braking power 2,000 W
Max speed 25,000 rpm
24 Volt Coil
This unit requires 620 KPa (90 psi) @ 20 SCFM for proper cooling
3. Magtrol - Model: 004661Item: HB-450-1
Hysteresis brake HB-450-1 Min. torque at rated current
450Oz.in Max. speed 8'000min-1 Power ratings continuous
160W Power ratings intermittent 670W Power supply
93.6VDC
4. Magtrol - Model: 311-101-051-101
CALIBRATION ARM
Calibration arm for WB/PB 43 (need 2 per dyno!)
5. Magtrol - Model: 312-101-000-051
Item: 1WB65
Eddy currrent dynamometer
including speed probe OS 123
Rated torque 10Nm at 5730min-1
Maximum braking power 6kW
Maximum speed 30000min-1
6. Magtrol - Model: 234-411-000-111
Item: DES 411/111 Kit for Dyno 65, 115 & 1WB15
Kit dynamometer excitation supply for series 65, 115 and 15 dynamometer, in aluminium housing, with 5m cable between DES411 and DSP6001/7000 and 1.5m cable between DES411 and dyno
7. Magtrol - Model: 234-401-000-222
Item: TSC 401/222 FOR DYNO 65, 115 & 15
Torque-Speed Conditioner for 65, 115 and 15 series
dynamometers suitable for DSP6001/7000 with 2x 1.5m
cables between TSC401 and dynamometer
8. Magtrol - Model: 234-401-000-222
Item: TSC 401/222 FOR DYNO 65, 115 & 15
Torque-Speed Conditioner for 65, 115 and 15 series
dynamometers suitable for DSP6001/7000 with 2x 1.5m
cables between TSC401 and dynamometer
9. Magtrol - Model: 88M372-0500
Item: TORQUE-SPEED CABLE 14M/15F (DSP TO TSC/DYNO) 5m
Torque/speed cable 14-pin male - 15-pin female for
dynamometers / TSC with DSP6001 / 700x electronic, length 5m
10. Magtrol - SPECIALITEM
Item CW-ENR.004 FOR 1WB65
Chiller water cooling system
Cooling power 6.9kW
Pump pressure 2.7bar
Water flow rate 17l/min
Plastic water tank 25liters
Dimensions L=600 W=725 H=1060mm
Power supply 230VAC 50Hz
Electrical power consumption 2.1kW
Noise level at 10m 51.6dB (A)
With IN / OUT external stop valves and connections
With control valve and manometer
With air flush inlet
Electrical connector and water hoses not included
11. Magtrol - Model: 422-214-000-013
Item: LE 214/013 50kN
Strain gauge load measuring pin, execution
with integrated 2-wire signal amplifier
(4-20mA). Nominal load 50kN, axial connector
12. Magtrol - Model: 422-218-000-013
Item: LE 218/013 500kN
Strain gauge load measuring pin, execution
with integrated 2-wire signal amplifier
(4-20mA). Nominal load 500kN, axial connector
13. Magtrol - Model: 122-216/011/004
Item: LB 216-011/004 100kN, 20m
Strain gauge load measuring pin in standard version.
Nominal load 100kN integral cable 20m, PG radial
14. Magtrol - Model: 311-201-000-051
Item: 2WB43
Eddy currrent dynamometer including speed probe OS 123
Rated torque 3 Nm at 9550min-1 Maximum braking power 3
kW Maximum speed 50000min-1
15. Magtrol - Model: 234-410-000-111
Item: DES 410/111 KIT FOR DYNO 2.7 & 43
Kit dynamometer excitation supply for series 2.7 and 43
dynamometer, in aluminium housing, with 5m cable between
DES410 and DSP6001/7000 and 1.5m cable between
DES410 and dyno
-
