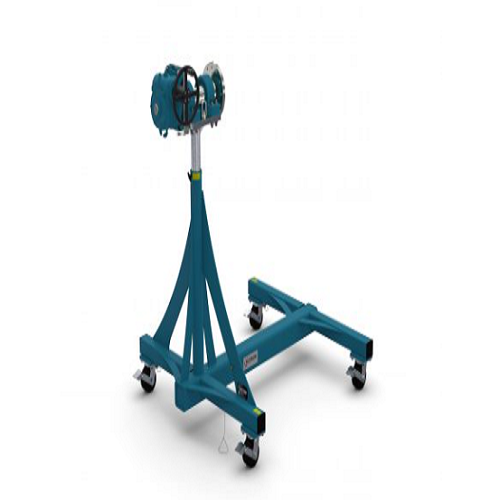

KA-25B-48SG-300

Xuất sứ: Hàn

Nhà cung cấp: flotron

Hãng sản xuất: Flotron

Liên hệ tư vấn

Mr Bảo

giabao@ansgroup.asia

0988064140

  • Part No.: KA-25B-48SG-300

  • Dùng cho van: FOR VALVE: 48" 150# / GATE

  • *Thông số chung (Common Specification):

    • AIR MOTOR: 6AM (4.0HP)

    • VALVE: 48" 150# / GATE (Out of Scope)

    • POSITION INDICATOR: Có

    • TORQUE SWITCH: Open / Close Torque Switch

    • MOUNTING: SIDE

    • MANUAL HANDWHEEL: Có

    • LOCAL S/W PANEL: Có

    • PNEUMATIC CONNECTION: 1/2"

    • Protection Class: IP66

  • Xuất xứ: 100% Korea Origin - FLOTRON Vietnam


    LIST CODE :


    1

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  KP-025C-11AOS-G
    P/D Flowmeter
    Connection: 25mm
    Flange Rating: JIS 10K RF
    Material: Body 316SS, Rotor - 316SS
    Accuracy: ±0.5% of R.D
    Allowable Temp. Range: -10~120℃
    Max Operating Pressure: 0.98 Mpa
    Explosion Proof: Exd IIB T4
    Output: Analog 4~20mA + Open Collector SCALED PULSE



    1

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  NF750
    FLOW COMPUTER
    INPUT :  Pulse or Analog OUTPUT : Pulse / 4 ~ 20mA
    COMMUNICATION : RS232/422/485
    POWER : AC 100-240V / DC 24V



    1

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  KA-25B-16SG-300
    FOR VALVE: 16" 150# / GATE
    Air Operated Valve Actuator
    *Common Specification
    AIR MOTOR: 6AM(4.0HP)
    VALVE: 16" 150# / GATE (Out of Scope) POSITION INDICATOR
    OPEN / CLOSE TORQUE SWITCH
    MOUNTING: SIDE
    POSITION INDICATOR
    MANUAL HANDWHEEL
    LOCAL S/W PANEL
    PNEUMATIC CONNECTION: 1/2"
    Protection Class: IP66

    2

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  KA-25B-30SG-300
    FOR VALVE: 30" 150# / GATE
    Air Operated Valve Actuator
    *Common Specification
    AIR MOTOR: 6AM(4.0HP)
    VALVE: 16" 150# / GATE (Out of Scope) POSITION INDICATOR
    OPEN / CLOSE TORQUE SWITCH
    MOUNTING: SIDE
    POSITION INDICATOR
    MANUAL HANDWHEEL
    LOCAL S/W PANEL
    PNEUMATIC CONNECTION: 1/2"
    Protection Class: IP66

    3

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  KA-25B-48SG-300
    FOR VALVE: 48" 150# / GATE
    Air Operated Valve Actuator
    *Common Specification
    AIR MOTOR: 6AM(4.0HP)
    VALVE: 16" 150# / GATE (Out of Scope) POSITION INDICATOR
    OPEN / CLOSE TORQUE SWITCH
    MOUNTING: SIDE
    POSITION INDICATOR
    MANUAL HANDWHEEL
    LOCAL S/W PANEL
    PNEUMATIC CONNECTION: 1/2"
    Protection Class: IP66



    1

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  NF760
    BATCH CONTROLLER
    POWER : 110 ~ 220 VAC, DC24V
    DISPLAY : BATCH,RATE,TOTAL(LCD-BACKLIGHT)
    2-LINE 20-CHARACER LCD
    OUTPUT : PULSE, ANALOG, RS-(485/232)
    MAKER : FLOTRON



    1

    100% Korea Origin

    FLOTRON Vietnam

    Part No.:  NF750
    FLOW COMPUTER
    POWER : 110 ~ 220V AC 60Hz
    MOUNTING : PANEL TYPE
    INPUT : FLOW - PULSE, Analog (FROM FLOWMETER)
    PRESS. - Analog 4 ~ 20mA
    TEMP. - RTD (Pt 100 Ohm 0℃)
    OUTPUT : PULSE & Analog(4~20mA) & RS232/422/485



    1

    100% Korea Origin

    Flotron Vietnam

    Model: NF750
    Flow computer
    Input:  Flow - Pulse & Analog (from flowmeter)
    Temp. - Pt 100 ohm at 0◦C
    Press. - 4~ 20mA (From PT)
    Output: Analog 4-20mA & Pulse & RS232/422/485
    Power : AC 100~240 V



    1

    100% Korea Origin

    Flotron Vietnam

    Code: KV025W-C3L-12CU
    Flowmeter
    Type: Integral
    Material: Body - CF8M(316SS)
    Output: Unfactored Current Pulse
    Power: DC 24V
    Connection: 25A JIS 30K Wafer
    Confirm  temperature, pressure, flow rate, fluid when order

    2

    100% Korea Origin

    Flotron Vietnam

    Code: KV025W-C1L-12CU
    Flowmeter
    Type: Integral
    Material: Body - CF8M(316SS)
    Output: Unfactored Current Pulse
    Power: DC 24V
    Connection: 25A JIS 10K Wafer
    Confirm  temperature, pressure, flow rate, fluid when order

    3

    100% Korea Origin

    Flotron Vietnam

    Code: KV150W-C1S-12CU
    Flowmeter
    Type: Integral
    Material: Body - CF8M(316SS)
    Output: Unfactored Current Pulse
    Power: DC 24V
    Connection: 150A JIS 10K Wafer
    Confirm  temperature, pressure, flow rate, fluid when order

    4

    100% Korea Origin

    Flotron Vietnam

    Code: NF750-011
    Flow Computer
    Input : Flow - Analog & Pulse (From Vortex flowmeter)
    Temp. - Pt 100 ohm at 0°c (From R.T.D)
    Press. - 4 ~ 20mA (From PT)
    Output : Analog 4 ~ 20mA & RS232/422/485
    Power : AC 100~240V
    Confirm  temperature, pressure, flow rate, fluid when order

    5

    100% Korea Origin

    Flotron Vietnam

    Code: TC300
    Flow Indicator
    Input : Analog & Pulse (From flowmeter)
    Output : Analog 4~20mA & Pulse & RS 485
    Power : AC 100~220V
    Confirm  temperature, pressure, flow rate, fluid when order
