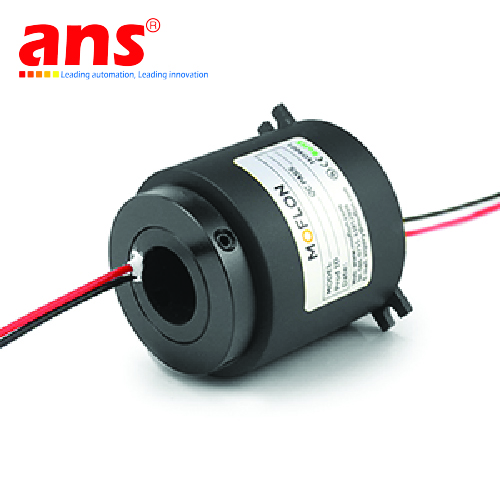

Vòng trượt GT0729-P0610-S06 Moflon Technology Vietnam
Xuất sứ: China
Nhà cung cấp: ansvietnam
Hãng sản xuất: Moflon
0327426197Vòng trượt GT0729-P0610-S06 Moflon Technology Vietnam
| Specification | ||||
| Mechanical data | Electrical data | |||
| Parameter | Value | Parameter | Value | |
| Working Life | 100 Million Revs | Power | Signal | |
| Rotating Speed | 1~1800PRM | Rated Voltage | 0~440VAC/VDC | 0~440VAC/VDC |
| Working Temp. | -30℃~80�?/td> | Insulation Res | �?00MΩ/500VDC | �?000MΩ/500VDC |
| Operating Humidity | 0~85% RH | Lead Wires | AWG22#Teflon | AWG22#Teflon |
| Contact Material | Precious Metal | Lead Length | Standard 300mm | |
| Housing Material | Engineering Plastics | Dielectric Strength | 500VAC@50Hz�?0s | |
| Torque | 0.05N.m�?0.02N.m/6ring | Res Noise | <0.03Ω | |
| Protection grade | IP51 | |||
